Tachometer Wiring: All You Need to Know

Welcome to this tachometer wiring basics guide that takes you through all the steps. By the end of this article, you should learn the significance of this component and the different types. Also, we’ll focus on how you can wire a tachometer all by yourself.

What is a Tachometer

It’s the component in a vehicle that provides you with the engine revolution rate revolutions per minute (RPM). Manufacturers install tachometers on these vehicles.

The obvious reason is to help detect when you’re having a slipping clutch problem or transmission glitches.

How Does the Tachometer Work?

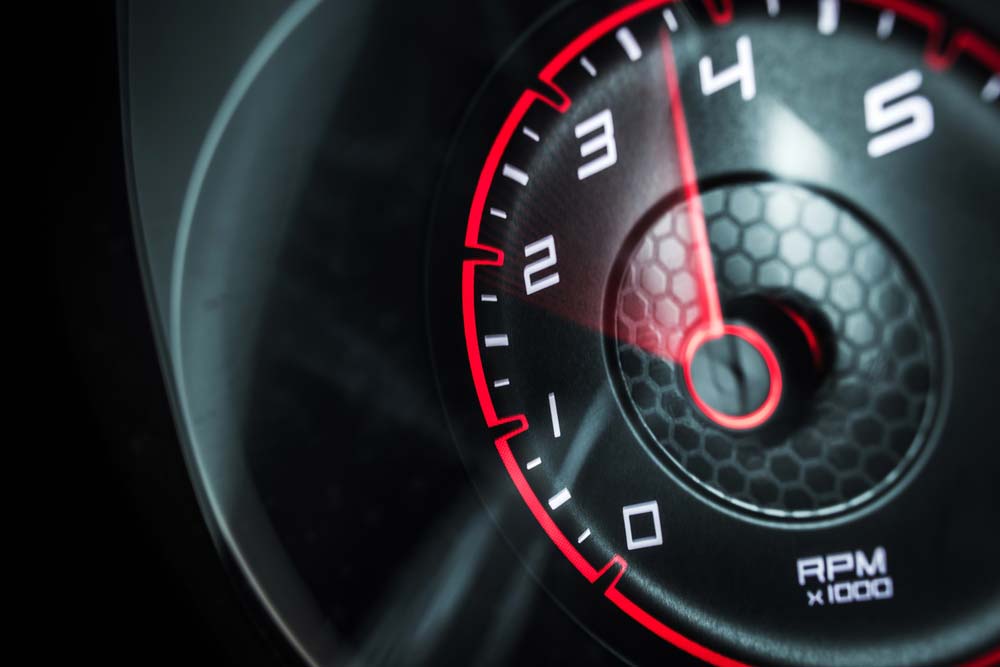

A Tach.

A Tach.

Most tachometers you’ll encounter are not as sophisticated as your typical speedometers. They usually have a number series running from zero to six or nine in some, across which the needle moves.

Usually, one unit in a tachometer represents a thousand revolutions. Therefore, for instance, your tach display is on number five. It means that your engine is running at 5000 revolutions per minute.

When your tach is in the red zone, it implies you’re approaching the maximum revolution of the car. For manual transmission engines, this is the ideal time to shift gears.

Types of Tachometers

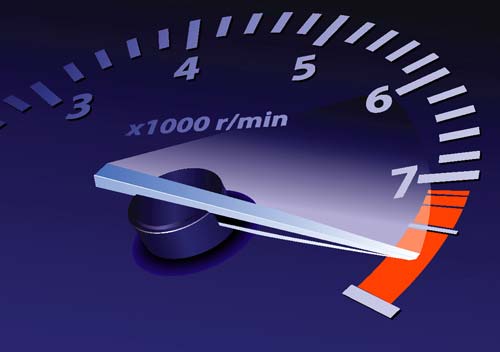

A Tachometer on a maximum level.

A Tachometer on a maximum level.

Digital Tachometer

A Digital Tach.

A Digital Tach.

They are the most common kind you’ll find in modern cars. Instead of a needle display, these indicate numbers on a digital display because they feature a microprocessor working with a crankshaft sensor to detect the engine speed.

Such a tach has the best accuracy over the others we’ll discuss below.

Mechanical Tachometer

Unlike the former type, this one has mechanical parts responsible for sensing and displaying the engine speed. So, how does it identify engine speed? Typically, it features a cable running from the display gauge to the crankshaft.

On the engine’s side, a shaft transmits the prevalent torque onto the cable. In turn, the cable transmits it to the magnetic needle on the display, causing it to move across the gauge. Its carnival downside is that it features the highest margin of error.

Analog Tachometer

You may not notice any profound difference between the analog and mechanical tach as they are similar. However, you will have a microprocessor instead of a signal transmission cable.

Therefore, the microprocessor picks signals and transfers them to the gauge indicator. Regarding margin of error, this tach is better than the mechanical one but worse than the digital type.

How to Install a Tachometer?

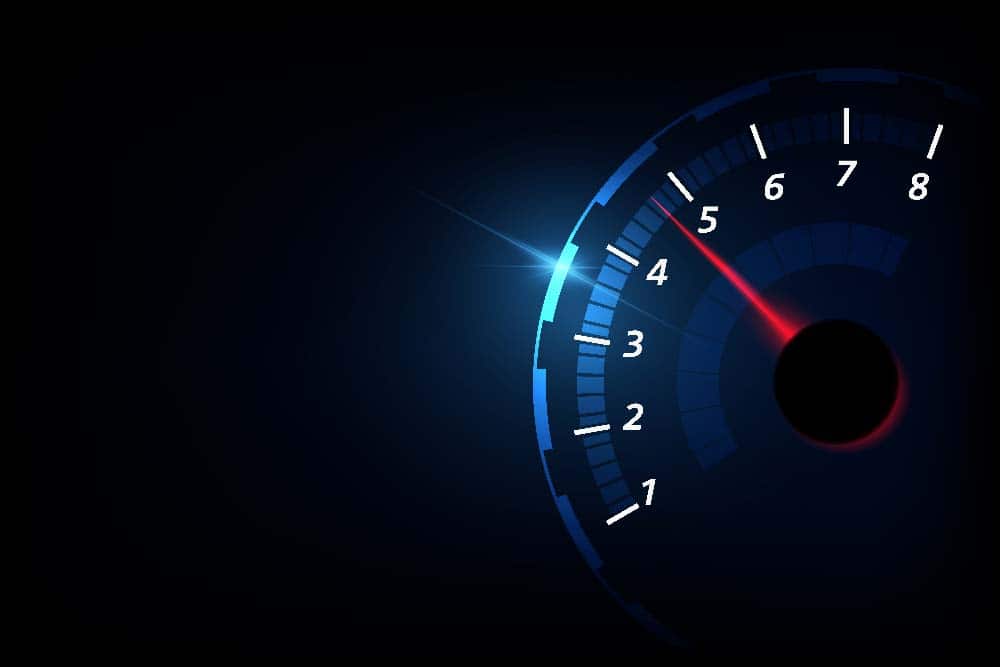

A Tachometer.

A Tachometer.

Parts Required

  • A compatible Tachometer with the one you’re replacing,
  • A Mounting Bracket to secure your tach perfectly on the dashboard,
  • A Wiring Harness to transmit the tach’s signal from the gauge to the engine.

Ideal Mounting Position

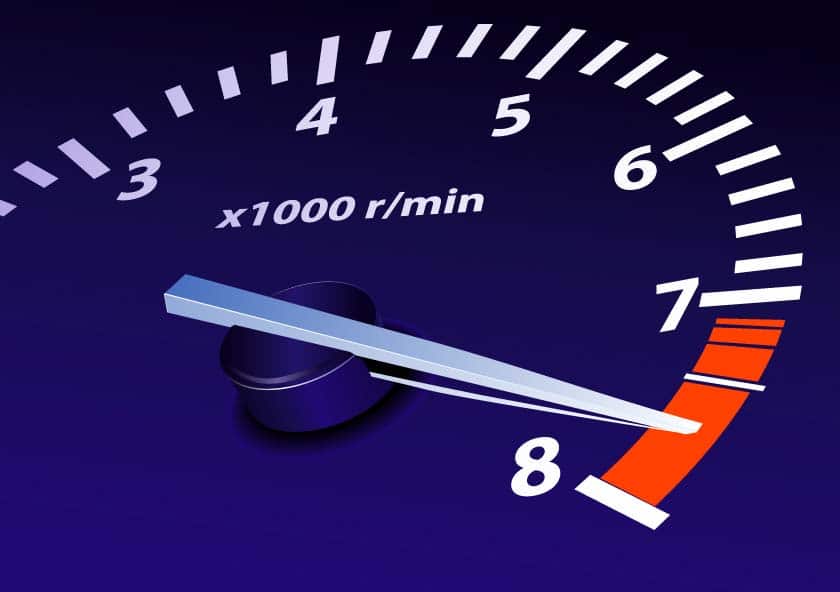

A Tachometer.

A Tachometer.

First, identify where you’d like to position the tach. We assume you already had one before. So the most convenient position is on the port where the other one was occupied earlier.

The rule of thumb is that the mounting position must be a point where you can see it while driving.

Clean and Mark the Mount

Car Dashboard.

Car Dashboard.

Your mounting surface ought to be clean for a perfect installation job. So consider sanding the surface to remove to remove any attached dirt. Also, wipe the area with a cleaning agent such as alcohol or water. It will help remove loose particles on the surface.

Most of the tachometer’s mounting brackets have a tracking template to assist you in making holes where you want to place them. Therefore, place your template around the clean area and mark where you’ll install the screws.

Next, install your mounting bracket and ensure it firmly sits on the dash. Use the right size screws to guarantee a firm connection.

Wiring

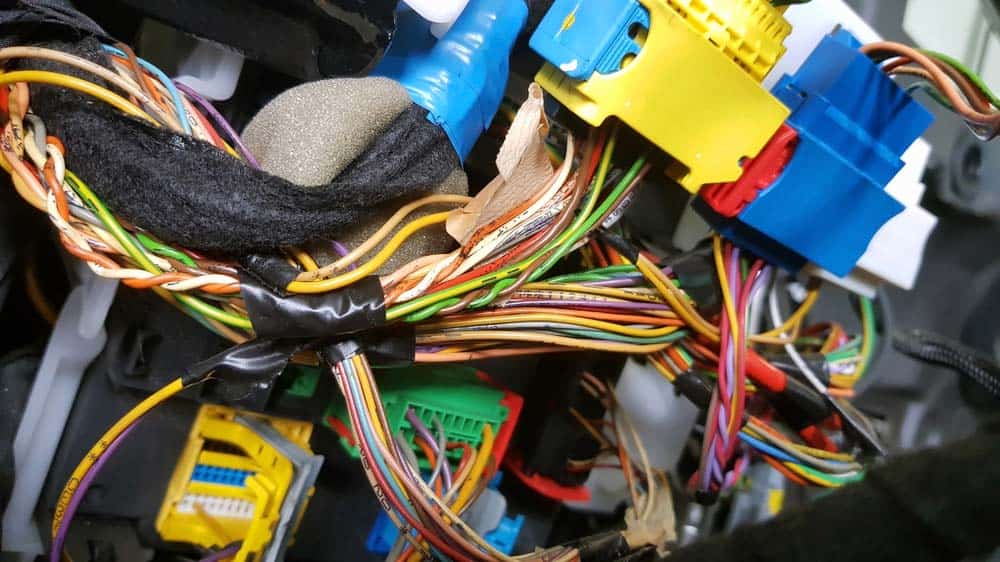

Engine Wiring.

Engine Wiring.

Check out the new tach’s pack for a wiring manual informing you where to place each wire. Also, you will need the vehicle’s wiring manual at this juncture. The most important connection is the ignition wire, as this is where you will connect the tachometer.

Therefore, identify it and connect the wires as per your manuals. Next, ensure to use wire connectors to ensure you have strong connections. If there’s a need for soldering, do it for a clean wiring job.

Connect the Power Cables

Car’s Chassis

Car’s Chassis

Now it’s time to connect your tach to a power source. But most importantly, you must ensure sufficient power protection between the source and the tach.

It is where a fuse box is handy, as it will act as the cushion point protecting the tachometer from power surges.

Also, it would be best if you had your revolution meter’s ground terminal on the vehicle’s chassis for earthing.

Ensure your wire section is neat. So, we recommend you have the cables perfectly zipped in place. It will save you from electrical accidents from the cables contacting the vehicle’s moving parts.

Test the Tachometer

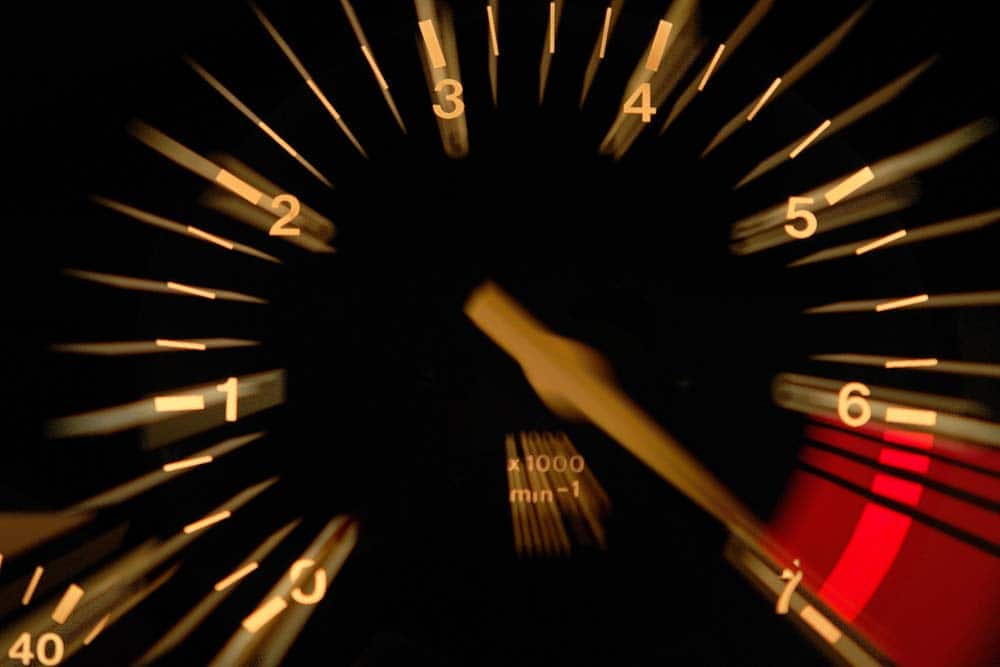

Tachometer.

Tachometer.

Ignite the vehicle and check if the engine’s readings correspond to how you press the accelerator.

If you detect abnormal RPM readings, you will have to reset everything. But if things are okay, proceed to finalize the installation by confirming you have no loose wires.

Also, check if you’re comfortable with the mounting position and ensure you can view the tachometer without strain.

Test Drive

Car Test Drive.

Car Test Drive.

It is the final step to verify that your Tachometer works as efficiently as possible. Take your car for a test drive, preferably with a mechanic alongside you for advice.

Now, you can comfortably drive your vehicle while ensuring that your tachometer will give accurate readings.

Wrap Up

If you love manual cars, we have covered all you need to know about a critical component in its functionality. For more, contact us anytime.
